Turnup Bearing Housing Iron Material With 5 Seal Rings
1). Bearing size: 6204, 6205, 6305, 6206, 6306, 6307, 6308
2). Bearing Housing type: pressed housing, cast iron bearing housing, polymer housing
3). Seal: Multiple labyrinth seal, Waterproof,dust proof,corrosion resistance
4). Production capacity: 2000pcs/day.
Specification:
| Bearing | Shaft Diameter | Pipe O.D. | Bearing Housing O.D. | Upper Bore Diameter | Bottom Bore Diameter | Bearing O.D. | Depth | Thickness |
| 6204 | 20 | 63 | 59.5 | 47.1 | 35 | 47 | 42.5 | 2.5 |
| 76 | 72 | 2.5 |
| 89 | 83/84/85 | 2.5 |
| 102 | 97 | 2.5/3.0 |
| 108 | 103 | 2.5/3.0 |
| 114 | 109/110 | 2.5/3.0 |
| 127 | 121/122 | 2.5/3.0 |
| 133 | 127/128 | 2.5/3.0 |
| 140 | 134/135/136 | 2.5/3.0 |
| 152 | 146/147 | 2.5/3.0 |
| 159 | 152/153 | 2.5/3.0 |
| 6205 | 25 | 76 | 72 | 52.1 | 40 | 52 | 45 | 2.5 |
| 89 | 83/84/85 | 2.5 |
| 102 | 97 | 2.5/3.0 |
| 108 | 103 | 2.5/3.0 |
| 114 | 109/110 | 2.5/3.0 |
| 127 | 121/122 | 2.5/3.0 |
| 133 | 127/128 | 2.5/3.0 |
| 140 | 134/135/136 | 2.5/3.0 |
| 152 | 146/147 | 2.5/3.0 |
| 159 | 152/153 | 2.5/3.0 |
Main Feature of conveyor idler roller bearing housing and labyrinth
seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with
a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use
of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft
and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100%
tested for its concentricity.
6) Roller and supporting components / materials are manufactured to
DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive
alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending
on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff,
sandstone and dust proof experiments
Product features
idle conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP
idle roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.
idle conveyor Roller
Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.
Material

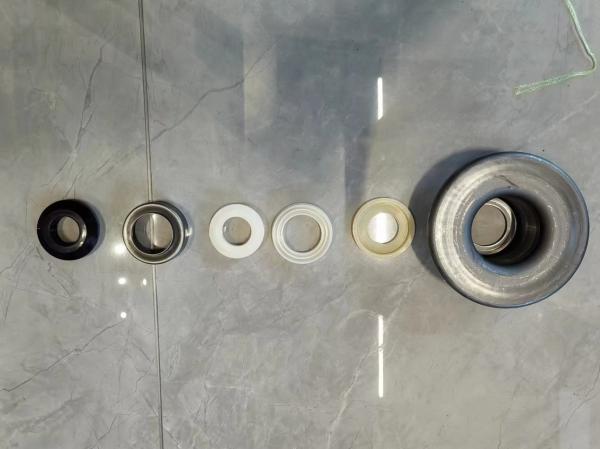

Full Set of the TK Series Bearing housing and seals Including:
Materials :
♦ Bearing Housing: SPHC
♦ Sealing Ring: Nylon PA6
♦ Labyrinth Seal: POM
♦ Outer Cap: SPCC
♦ Dust Cover: Nylon PA6
